RELAYS

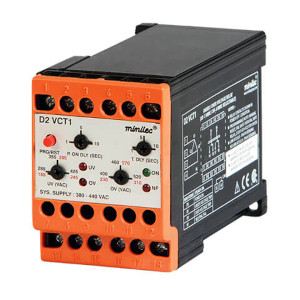

Minilec D2 VCT1 monitoring relay
Click to enlarge

D2 VCT1

Monitoring Relay

  • 3-phase + 3-wire or 3-phase + 4-wire under & over voltage (UV/OV)
  • Microcontroller based design
  • Auto/manual reset
  • Adjustable UV/OV settings
  • Absolute values for UV/OV
  • Adjustable trip & on delay
  • 2 CO output relay or 1 CO for UV + 1CO for OV (failsafe/non-failsafe)
System Supply
220/440 VAC −25%, +20%, 48—63 Hz
Trip Setting
Voltage Function 220 V 440 V
UV Ph Ph Setting (variable) 165—225 VAC 285—425 VAC
Ph N Sensing (variable) 95—135 VAC 165—245 VAC
OV Ph Ph Setting (variable) 230—290 VAC 400—520 VAC
Ph N Sensing (variable) 130—170 VAC 230—310 VAC
Delay Settings
Trip Time Delay 1—10 sec. (variable for UV/OV/NF)
Power on Delay 1—10 sec. (variable)
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.

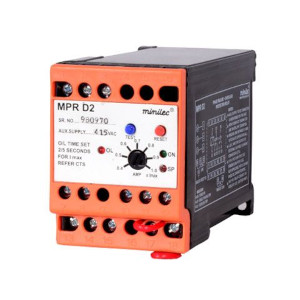

Minilec MPR D2 motor/pump protection relay
Click to enlarge

MPR D2

Motor/Pump Protection Relay

  • Phase failure and sequence
  • Unbalance
  • Overloading
  • Auto/manual reset
  • Adjustable current trip settings
  • Selectable characteristics
  • 1 CO / 2 CO output relay
Supply Voltage
110/220/440 VAC ±20%, 50/60 Hz
Ext. Input
From CTS
Trip Setting
Phase to Phase Unbalance 50% of motor current ±10%
Overload Above 120% of set current (IDMTL)
Trip Time Delay
On Phase Failure 5.5 sec. ±1.5 sec.
For Overloading (as per Selectable Inverse Time Characteristics) 2/5 sec., 10 sec., 15 sec., or 20 sec. (optional)
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.

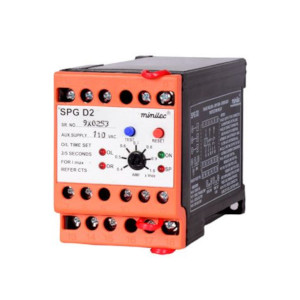

Minilec SPG D2 motor/pump protection relay
Click to enlarge

SPG D2

Motor/Pump Protection Relay

  • Phase failure and sequence
  • Unbalance
  • Overloading and dry running
  • Auto/manual reset
  • Adjustable current trip settings
  • Selectable overload characteristics
  • 1 CO / 2 CO output relay
Supply Voltage
240/415 VAC ±20%, 50/60 Hz
Ext. Input
From CTS
Trip Setting
Phase to Phase Unbalance 50% of motor current
Under Current (Dry Running) 50/75% of set current
Overload Above 120% of set current (IDMTL)
Trip Time Delay
On Phase Failure 5.5 sec. ±1.5 sec.
For Overloading (as per Selectable Inverse Time Characteristics) 2/5 sec. or 10 sec.
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.

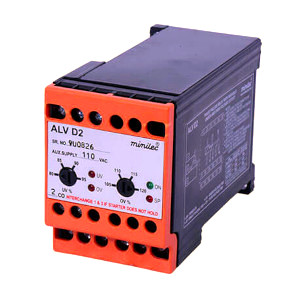

Minilec ALV D2 phase failure relay
Click to enlarge

ALV D2

Phase Failure Relay

  • Phase failure and sequence
  • Unbalance, fixed setting
  • Under voltage
  • Over voltage, auto reset
  • Adjustable UV/OV settings
  • 2 CO output relay
Supply Voltage
220/440 VAC ±20%, 50/60 Hz
Trip Setting 220 VAC 440 VAC
Phase Unbalance 40 V ±6 V (fixed) 40 V ±6 V (fixed)
Under Voltage 80%—95% (adjustable) of auxilary supply (±2% of set value) 105%—120% (adjustable) of auxilary supply (±2% of set value)
Trip Time Delay
On Phase Failure/Unbalance 3.5 sec. ±1.5 sec.
On UV/OV < 2 sec.
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.

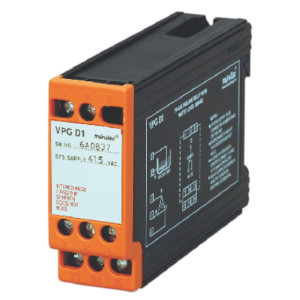

Minilec VPG D1 phase failure relay
Click to enlarge

VPG D1

Phase Failure Relay

  • Single and reverse phasing
  • Unbalanced supply
  • Auto reset
  • 1 CO output contact
  • Suitable for any HP/kW rating submersible pumps
  • Low water level guard for dry running protection
Supply Voltage
220 VAC ±20%, 50 Hz ±3%
Trip Setting
Phase Unbalance 40 V ±6 V
Trip Time Delay
On Phase Failure/Unbalance 3.5 sec. ±1.5 sec.
For Level Sensing 3.5 sec. ±1.5 sec.
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.

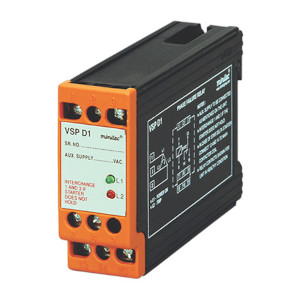

Minilec VSP D1 phase failure relay
Click to enlarge

VSP D1

Phase Failure Relay

  • Phase failure and sequence
  • Unbalance, fixed setting
  • Auto reset
  • 1 CO output relay
Supply Voltage
220/440 VAC ±20%, 50/60 Hz
Trip Setting
Phase Unbalance 40 V ±6 V
Trip Time Delay
On Phase Failure/Unbalance 3.5 sec. ±1.5 sec.
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.
