EUROTEC Philippine Distributor for Siemens, Minilec, and Carlo Gavazzi
MAGNETIC CONTACTORS

SIRIUS 3RT CONTACTORS FOR INDUSTRIAL APPLICATIONS

AC Operation, 3-Pole with Screw Terminals: For Screw and Snap-On Mounting on 35mm Standard Mounting Rails

  Product Code AC-1 AC-3 at 400 V Operating Coil Voltage
A A kW

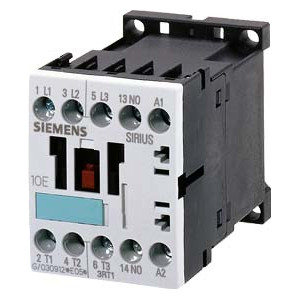

Siemens 3RT1015-1AF01 power contactor
Click to enlarge
  • Size S00
  • 1 NO auxiliary contact
 3RT1015-1AF01 18     110 VAC
3RT1015-1AG21 18     110 VAC
3RT1015-1AP01 18 7 3 230 VAC
3RT1015-1BB41 18 7 3 24 VDC
3RT1016-1AF01 22     110 VAC
3RT1016-1AP01 22 9 4 230 VAC
3RT1017-1AF01 22     110 VAC
3RT1017-1AN21 22 12 5.5 220 VAC
3RT1017-1AP01 22 12 5.5 230 VAC
  Product Code AC-1 AC-3 at 400 V Operating Coil Voltage
A A kW

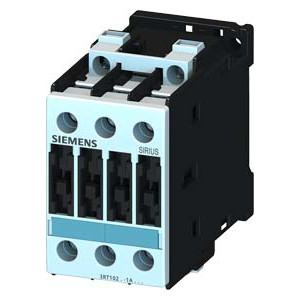

Siemens 3RT1023-1AL20 power contactor
Click to enlarge
  • Size S0
 3RT1023-1AL20 40 9 4 230 VAC
3RT1024-1AG20 40     110 VAC
3RT1024-1AN20 40 12 5.5 220 VAC
3RT1024-1BB44 40 12 5.5 24 VDC
3RT1025-1AC20 40 17 7.5 24 VAC
3RT1025-1AL20 40 17 7.5 230 VAC
3RT1025-1AN20 40 17 7.5 220 VAC
3RT1025-1AR60 40 17 7.5 400 VAC
3RT1025-1BB40 40 17 7.5 24 VDC
3RT1026-1AG20 40     110 VAC
3RT1026-1AN20 40 25 11 220 VAC
  Product Code AC-1 AC-3 at 400 V Operating Coil Voltage
A A kW
Siemens 3RT1023-1BB44 power contactor
Click to enlarge
  • Size S00
  • 2 NO + 2 NC auxiliary contacts
 3RT1023-1BB44 40 9 4 24 VDC
3RT1024-1AN24 40 12 5.5 220 VAC
  Product Code AC-1 AC-3 at 400 V Operating Coil Voltage
A A kW

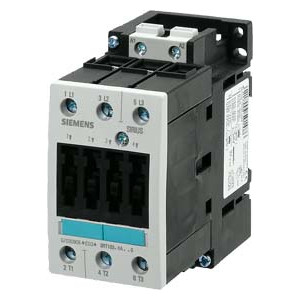

Siemens 3RT1034-1AG20 power contactor
Click to enlarge
  • Size S2
 3RT1034-1AG20 50     110 VAC
3RT1035-1AG20 60     110 VAC
3RT1035-1AN20 60 40 18.5 220 VAC
3RT1035-1BB40 60 40 18.5 24 VDC
3RT1036-1AG20 60     110 VAC
3RT1036-1AN20 60 50 22 220 VAC
3RT1036-1BB40 60 50 22 24 VDC
  Product Code AC-1 AC-3 at 400 V Operating Coil Voltage
A A kW

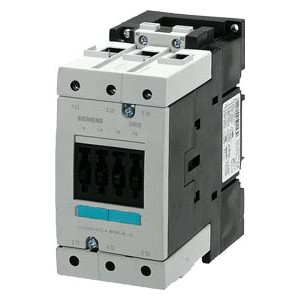

Siemens 3RT1044-1AG20 power contactor
Click to enlarge
  • Size S3
 3RT1044-1AG20 100     110 VAC
3RT1044-1AN20 100 65 30 220 VAC
3RT1045-1AG20 120     110 VAC
3RT1045-1AL20 120 80 37 230 VAC
3RT1045-1AN20 120 80 37 220 VAC
3RT1046-1AG20 120     110 VAC
3RT1046-1AL20 120 95 45 230 VAC
3RT1046-1BB40 120 95 45 24 VDC
  Product Code AC-1 AC-3 at 400 V Operating Coil Voltage
A A kW

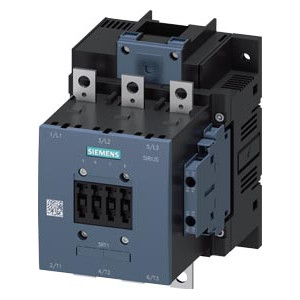

Siemens 3RT1056-6AF36 power contactor
Click to enlarge
  • Size S6
  • 2 NO + 2 NC auxiliary contacts
 3RT1056-6AF36 215     110—127 VAC
  Product Code AC-1 AC-3 at 400 V Operating Coil Voltage
A A kW

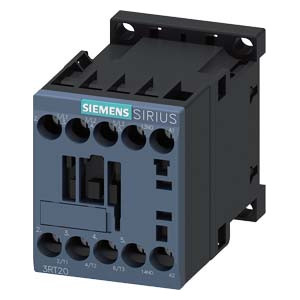

Siemens 3RT2015-1AP01 power contactor
Click to enlarge
  • Size S00
  • 1 NO auxiliary contact
 3RT2015-1AP01 18 7 3 230 VAC
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.

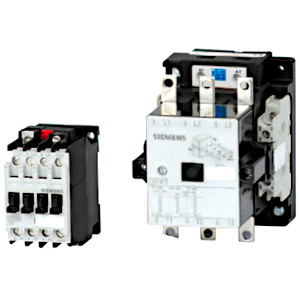

Siemens 3TF3 and 3TF56 contactors
Click to enlarge

3TF3 TO 3TF56 CONTACTORS FOR SWITCHING MOTORS

3-Pole with Screw Terminals: For Screw and Snap-On Mounting onto 35mm Standard Mounting Rails

Product Code Size Supply Voltage AC-1 Duty AC-3 Duty Auxiliary Contacts
Operational Current/e (at 40°C) Rated Outputs of Three-Phase Motors at 60Hz kW HP Operational Current/e NO NC
3TF3010-0XR2 0 440 VAC 20 A 460/440 V 4 5.5 9 A 1
3TF3010-1XB4 0 24 VDC 20 A 460/440 V 4 5.5 9 A 1
3TF3110-0XG2 0 110 VAC 20 A         1
3TF3110-0XN2 0 220 VAC 20 A 460/440 V 5.5 7.5 12 A 1
3TF3211-1XB4 1 24 VDC 30 A 460/440 V 7.5 10 16 A 1 1
3TF3411-0XN2 2 220 VAC 55 A 460/440 V 15 20 32 A 1 1
3TF3411-1XB4 2 24 VDC 55 A 460/440 V 15 20 32 A 1 1
3TF3511-0XC2 2 24 VAC 55 A 460/440 V 22 30 38 A 1 1
3TF3511-0XD2 2 42 VAC 55 A 460/440 V 22 30 38 A 1 1
3TF3511-1XB4 2 24 VDC 55 A 460/440 V 22 30 38 A 1 1
3TF4022-0XC2 0 24 VAC 20 A 460/440 V 4 5.5 9 A 2 2
3TF4022-0XG2 0 110 VAC 20 A         2 2
3TF4022-0XR2 0 440 VAC 20 A 460/440 V 4 5.5 9 A 2 2
3TF4022-1XB4 0 24 VDC 20 A 460/440 V 4 5.5 9 A 2 2
3TF4111-0BB4 0 24 VDC 20 A 400/380 V 5.5 7.5 9 A 1 1
3TF4422-1XB4 2 24 VDC 55 A 460/440 V 15 20 32 A 2 2
3TF4622-0XC2 3 24 VAC 80 A 460/440 V 25 35 45 A 2 2
3TF4622-0XG2 3 110 VAC 80 A         2 2
3TF4622-1XB4 3 24 VDC 80 A 460/440 V 25 35 45 A 2 2
3TF4722-0BB4 3 24 VDC 90 A 460/440 V 37 50 63 A 2 2
3TF4922-0DB4 4 24 VDC 100 A 460/440 V 50 70 85 A 2 2
3TF4922-0XR2 4 440 VAC 100 A 460/440 V 50 70 85 A 2 2
3TF5122-0XG2 6 110 VAC 160 A         2 2
3TF5122-0XN2 6 220 VAC 160 A 460/440 V 80 110 140 A 2 2
3TF5122-0XR2 6 440 VAC 160 A 460/440 V 80 110 140 A 2 2
3TF5522-0XN2 10 220 VAC 300 A 460/440 V 185 250 300 A 2 2
3TF5522-0XR2 10 440 VAC 300 A 460/440 V 185 250 300 A 2 2
3TF5544-0XN2 10 220 VAC 300 A 460/440 V 185 250 300 A 4 4
For inquiries or quotations, you may fill out our Inquiry Form or click here for other options.
